Tray Dryer

What is a Tray Dryer?

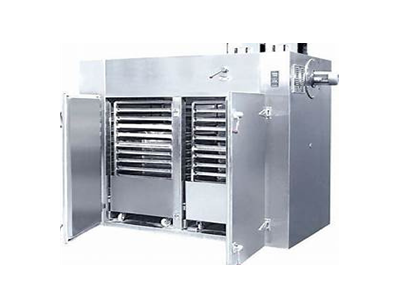

A tray dryer, also known as a shelf dryer or cabinet dryer, is a type of drying equipment used extensively in pharmaceutical manufacturing. It consists of a series of trays arranged in a drying chamber where materials are placed. Heated air is circulated around these trays, removing moisture from the materials through a controlled drying process.

How Does a Tray Dryer Work?

The operation of a tray dryer involves several key steps:

• 1. Loading: Materials to be dried are spread uniformly across the trays. The trays are then stacked in a chamber or cabinet.
• 2. Heating: Heated air is circulated through the chamber. This air can be heated using various sources such as electricity, steam, or hot water, depending on the design of the dryer.
• 3. Air Circulation: A fan or blower circulates the hot air around the trays. The air flow can be adjusted to ensure even distribution of heat and uniform drying of the materials.
• 4. Moisture Removal: As the hot air passes over the materials, moisture is evaporated and carried away. The air often passes through a dehumidification system before being recirculated or vented out.
• 5. Unloading: Once the desired level of dryness is achieved, the trays are removed, and the dried material is collected for further processing or packaging.

Applications of Tray Dryers in Pharmaceuticals

• 1. Drying Granules and Powders: Tray dryers are widely used for drying wet granules and powders after the granulation process, preparing them for tablet compression or encapsulation. This step is essential to ensure that the final product has the proper consistency and moisture content.
• 2. Drying Wet Masses: After mixing or blending, wet masses containing APIs and excipients can be dried in tray dryers to achieve the desired moisture level before proceeding to further processing steps.
• 3. Drying Herbal Extracts: In the production of herbal medicines and supplements, tray dryers are used to dry herbal extracts and botanicals, preserving their potency and extending their shelf-life.
• 4. Drying Active Pharmaceutical Ingredients (APIs): Tray dryers are also employed to dry APIs, which are sensitive to temperature and require controlled drying conditions to maintain their efficacy.
• 5. Sterile Drying: For processes requiring sterile conditions, tray dryers can be designed to operate under cleanroom conditions, ensuring that the drying process does not compromise the sterility of the product.

Benefits of Using Tray Dryers

• Uniform Drying: Tray dryers provide even drying across all trays, ensuring that all parts of the material reach the desired moisture content simultaneously.
• Versatility: Suitable for a wide range of materials, from wet powders to semi-solids, making them ideal for various pharmaceutical applications.
• Scalability: Available in different sizes and capacities, tray dryers can be used for small-scale lab applications or large-scale production.
• Ease of Use: Simple to operate and maintain, with easy loading and unloading of trays.
• Cost-Effective: Relatively low operational and maintenance costs compared to other drying methods.

Innovations and Future Trends

Tray dryers are evolving to meet the increasing demands for efficiency, precision, and safety in pharmaceutical manufacturing. Some of the notable innovations and trends include:

• Automated Controls: Modern tray dryers are equipped with automated control systems that allow precise control over temperature, airflow, and drying time, enhancing efficiency and product quality.
• Energy Efficiency: Advances in energy-efficient designs and the use of renewable energy sources for heating are reducing the operational costs and environmental impact of tray dryers.
• Cleanroom Compatibility: Improved designs that meet stringent cleanroom standards make tray dryers suitable for sterile and GMP-compliant operations.
• Data Logging and Monitoring: Integration with digital monitoring systems enables real-time tracking of drying conditions and process parameters, ensuring consistency and compliance with regulatory standards.

Conclusion

Tray dryers play a pivotal role in the pharmaceutical industry by providing an efficient and reliable solution for drying various materials. Their ability to deliver uniform drying, combined with their versatility and ease of use, makes them indispensable in the production of high-quality pharmaceutical products.

As the industry continues to evolve, advancements in tray dryer technology will further enhance their capabilities, supporting the production of safe, effective, and consistent pharmaceuticals. Investing in modern tray dryer systems is crucial for pharmaceutical companies looking to optimize their drying processes and maintain competitive advantage.
