Ribbon Blender

What is a Ribbon Blender?

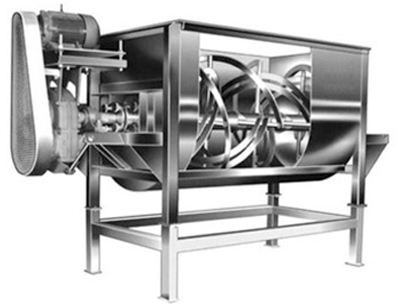

A ribbon blender is a type of industrial mixing equipment that is designed to mix dry powders and granules. It features a U-shaped horizontal trough and a set of helical blades (ribbons) mounted on a central shaft. The ribbons are designed to move materials both radially and laterally, ensuring thorough and uniform mixing throughout the batch. This design allows for efficient blending of materials with different sizes, shapes, and densities.

How Does a Ribbon Blender Work?

The ribbon blender operates on a straightforward yet highly effective principle. Here’s a step-by-step overview of its working mechanism:

1. Loading

• The blender is filled with the materials to be mixed through an inlet located at the top of the trough.
• The loading can be done manually or via automated systems, depending on the scale of the operation.

2. Blending:

• Once the materials are loaded, the central shaft, equipped with inner and outer ribbons, rotates.
• The outer ribbons move the materials from the ends of the trough towards the center, while the inner ribbons move the materials from the center to the ends.
• This counterflow movement ensures that the materials are constantly mixed and thoroughly blended, resulting in a homogeneous mixture.

3. Discharging:

• After the blending cycle is complete, the blended product is discharged through an outlet located at the bottom of the trough.
• The discharge process can be controlled to ensure smooth and complete emptying of the blender.

Advantages of Using a Ribbon Blender in Pharmaceuticals

Ribbon blenders offer several benefits that make them a preferred choice for pharmaceutical blending processes:

1. Effective and Uniform Mixing

• The dual helical ribbon design ensures efficient and thorough mixing, achieving uniformity in the final blend. This is crucial for consistent dosage forms in pharmaceutical products.

2. Versatility

• Ribbon blenders can handle a wide range of materials, including powders, granules, and even pastes. This versatility makes them suitable for various pharmaceutical formulations and processes.

3. Gentle Mixing

• The gentle mixing action of the ribbons minimizes the risk of particle degradation, making ribbon blenders ideal for blending sensitive or friable materials that can easily break down under excessive force.

4. Scalability

• Ribbon blenders come in various sizes, from small laboratory models to large industrial units, providing scalability to match different production needs and capacities.

5. Ease of Cleaning and Maintenance

• The simple design with easy access to the mixing trough and shaft allows for quick and thorough cleaning, which is vital in maintaining hygiene standards in pharmaceutical production

6. Cost-Effectiveness

• Ribbon blenders are relatively simple in design and operation, making them a cost-effective solution for many blending applications in pharmaceuticals.

Applications in the Pharmaceutical Industry

Ribbon blenders are widely used in various stages of pharmaceutical production, including:

• Mixing Active Pharmaceutical Ingredients (APIs): Ensuring that the active ingredient is evenly distributed throughout the mixture for consistent drug performance.
• Blending Excipients: Combining fillers, binders, and other excipients to create the desired formulation for tablets, capsules, or powders.
• Preparation of Granulations: Mixing powders before granulation to achieve a uniform distribution of all components.

Conclusion

The ribbon blender is an indispensable tool in pharmaceutical manufacturing, offering efficient and reliable mixing of powders and granules. Its ability to produce uniform blends while preserving the integrity of the ingredients makes it a vital component in the production of high-quality pharmaceutical products. As the pharmaceutical industry continues to advance, the ribbon blender remains a trusted solution for meeting the stringent requirements of modern drug manufacturing.
