Fluid Bed Dryer

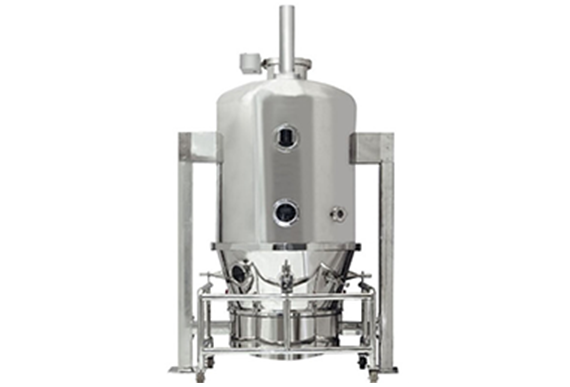

What is a Fluid Bed Dryer?

A fluid bed dryer is a piece of equipment designed to dry solids, typically powders and granules, by suspending them in a stream of hot air. This suspension creates a "fluidized" state, where the particles are thoroughly mixed and exposed to the drying air, leading to efficient and uniform drying.

How Does a Fluid Bed Dryer Work?

The operation of a fluid bed dryer involves the following key steps:

• 1. Loading: The material to be dried is loaded into the drying chamber, typically in a batch or continuous feed system.
• 2. Air Flow: Hot air is introduced through a perforated plate or mesh at the bottom of the chamber. This air flows upward through the material, creating a fluidized bed where the particles are suspended and agitated.
• 3. Drying: As the hot air passes through the fluidized material, moisture is evaporated and carried away. The rapid and uniform drying process ensures that each particle is evenly exposed to the drying air.
• 4. Exhaust: The moist air exits the drying chamber through filters or a cyclone separator, leaving behind the dried material. Some fluid bed dryers are equipped with an exhaust air recirculation system to improve energy efficiency.
• 5. Discharging: Once the drying process is complete, the dried product is discharged from the dryer and can be collected for further processing or packaging.

Applications of Fluid Bed Dryers in Pharmaceuticals

• 1. Granulation Drying: Fluid bed dryers are extensively used to dry granules after the wet granulation process, a crucial step in tablet production. This ensures that the granules have the appropriate moisture content for compression.
• 2. Powder Drying: For drying fine powders, such as those used in inhalable drugs or powders that will be processed into tablets or capsules, fluid bed dryers provide rapid and uniform drying, enhancing the flowability and stability of the powders.
• 3. Coating: Fluid bed dryers can also be used for coating particles, such as applying a protective layer on granules or pellets. This is particularly important in controlled-release drug formulations.
• 4. Drying Heat-Sensitive Materials: The gentle drying action of fluid bed dryers makes them suitable for heat-sensitive materials that might degrade under high temperatures.

Benefits of Using Fluid Bed Dryers

• Efficient Drying: Fluid bed dryers provide rapid and uniform drying, significantly reducing drying times compared to traditional methods. The thorough mixing of particles ensures that all material is dried evenly.
• Versatility: These dryers can handle a wide range of materials, including powders, granules, and pellets, making them suitable for various pharmaceutical applications.
• Energy Efficiency: Fluid bed dryers use less energy than other drying methods due to their efficient heat transfer and short drying times. Some models also incorporate air recirculation systems to further enhance energy savings.
• Scalability: Available in a range of sizes, fluid bed dryers can be used for small-scale laboratory testing and large-scale production, making them adaptable to different stages of pharmaceutical manufacturing.
• Gentle Handling: The fluidized state provides gentle drying, minimizing the risk of damaging fragile particles or heat-sensitive materials.

Innovations and Future Trends

As technology advances, fluid bed dryers are evolving to meet the growing demands of the pharmaceutical industry. Innovations and trends include:

• Integrated Systems: Modern fluid bed dryers often integrate drying, granulating, and coating processes into a single unit, streamlining production and reducing equipment footprint.
• Automation and Control: Enhanced automation and control systems allow for precise management of drying conditions, improving product quality and process repeatability.
• Continuous Processing: The shift towards continuous manufacturing in pharmaceuticals is driving the development of continuous fluid bed drying systems, which offer increased efficiency and consistency over batch processes.
• Advanced Airflow and Temperature Control: New designs focus on optimizing airflow patterns and temperature control to further enhance drying efficiency and product uniformity.

Conclusion

Fluid bed dryers have revolutionized the drying process in pharmaceutical manufacturing. Their ability to provide rapid, uniform, and gentle drying makes them indispensable for producing high-quality pharmaceutical products. As the industry continues to evolve, advancements in fluid bed dryer technology will play a crucial role in meeting the challenges of efficient, scalable, and reliable drying.

Investing in state-of-the-art fluid bed drying systems is essential for pharmaceutical companies aiming to optimize their production processes and maintain the highest standards of quality and efficiency.
